Solid State Variac

Variable Voltage, Variable Frequency

High Fidelity Sine

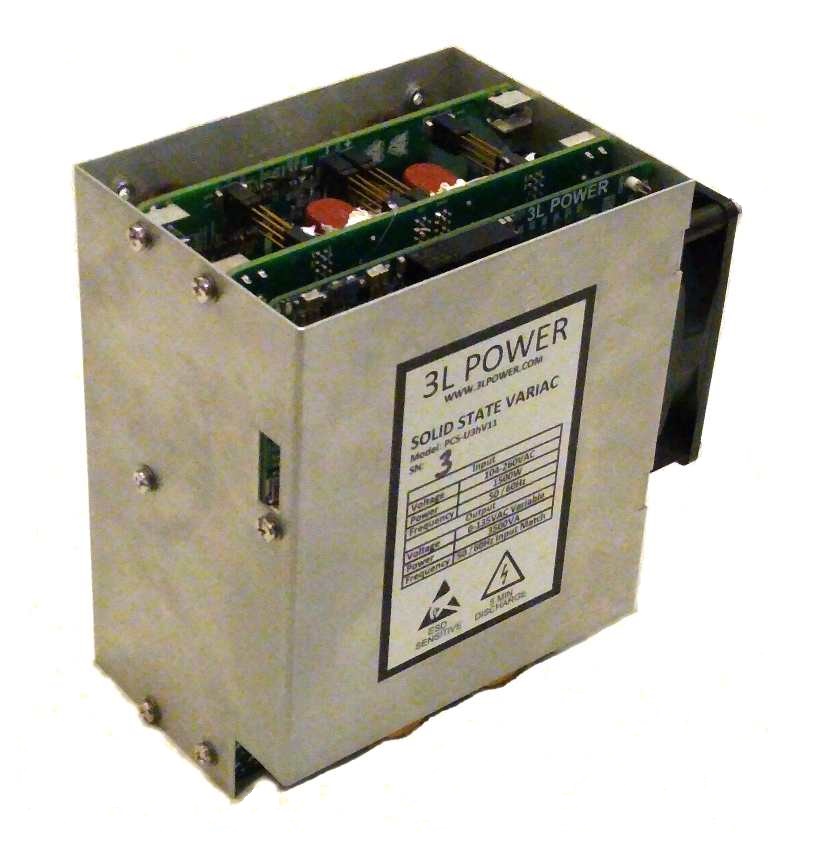

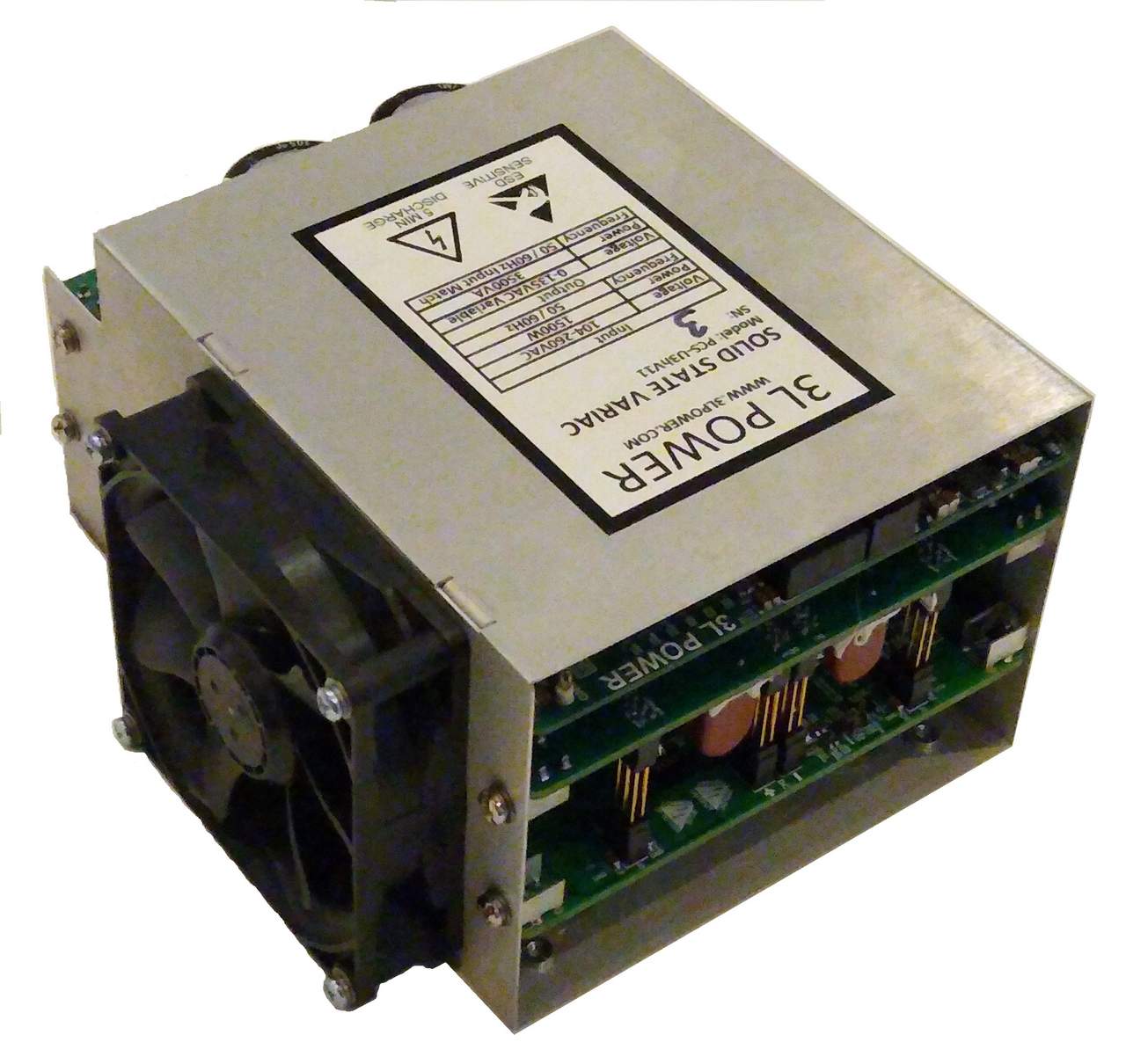

The 3L Power Solid State Variac generates a variable, differential, high-fidelity sine wave output between single milliVolts and 135 Vac, at variable frequency. Originally designed for utility test equipment, the output is a pure sinewave with DC output actively controlled to zero. The variac uses the latest technologies in a neutral point clamped topology for the smoothest, quietest output in the smallest package. The result is product that is an order of magnitude lighter than a traditional variac. With universal 120/240Vac input, peak output currents above 40A and a continuous power rating of 3.5kVA, the solid state variac has many uses:

• Microgrids

• Power supply for noise sensitive equipment

• Utility test equipment (CT excitation source)

• Frequency converter for 400 Hz systems

• Local power distribution voltage control




Other Microgrids

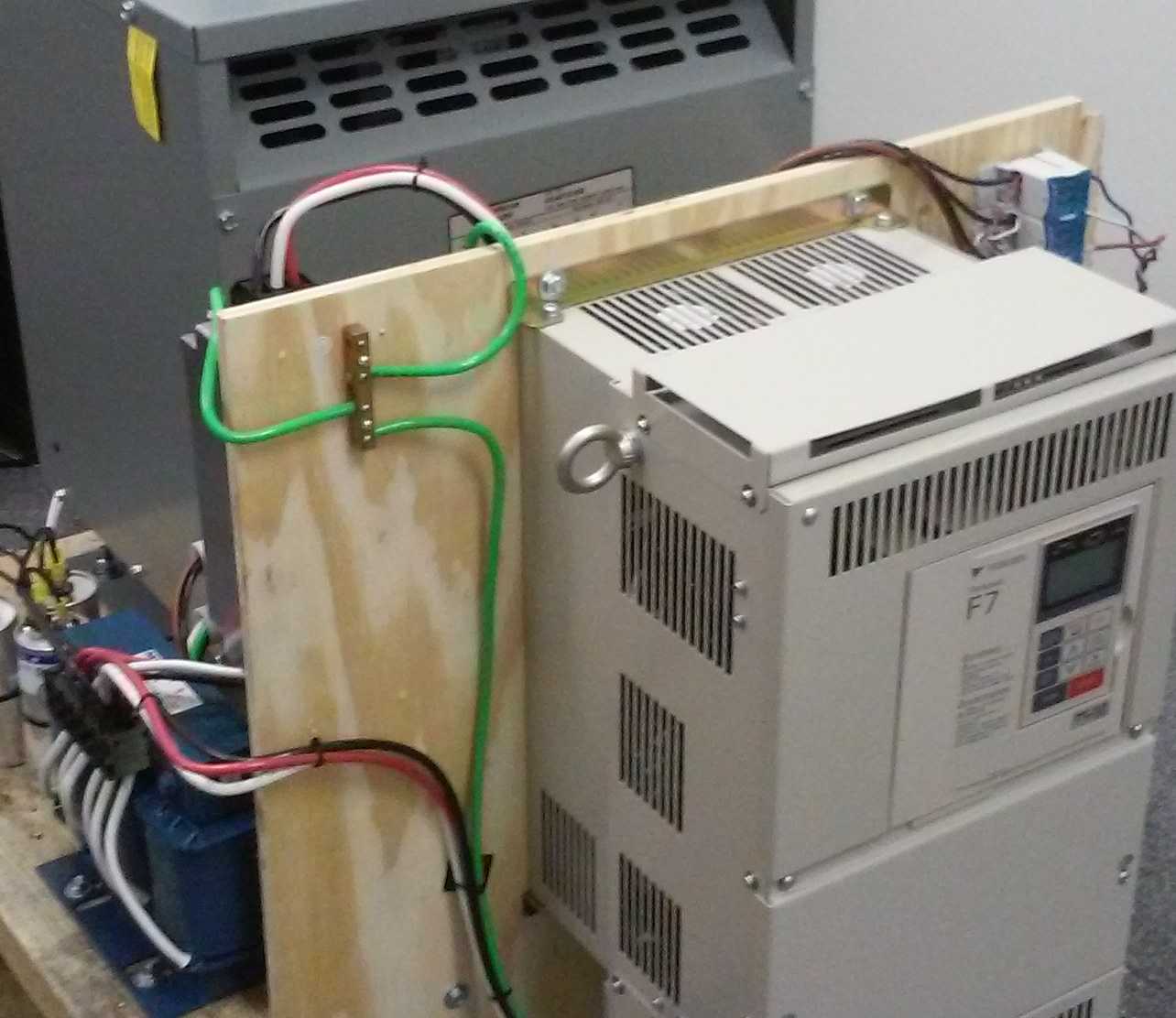

3L Power can build customized microgrids. Past projects include microgrids for small remote oil rigs as well as for machine shops that need to convert single phase 240 Vac into 3-phase 208Vac. Inquire at info@3LPower.com for more information.

Document/ Download Title

Type

Solid State Variac Datasheet

PDF

Solid State Variac User manual

PDF
